Update ECU with new Inverter Serial

To Update the Serial Information of the Micro Inverters in the ECU you will need to have a computer or device that is on the same network as the ECU.

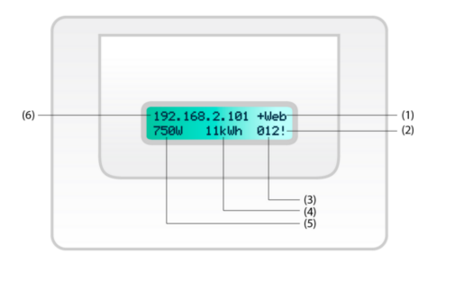

Type the IP address as displayed on the ECU into a web browser on your PC

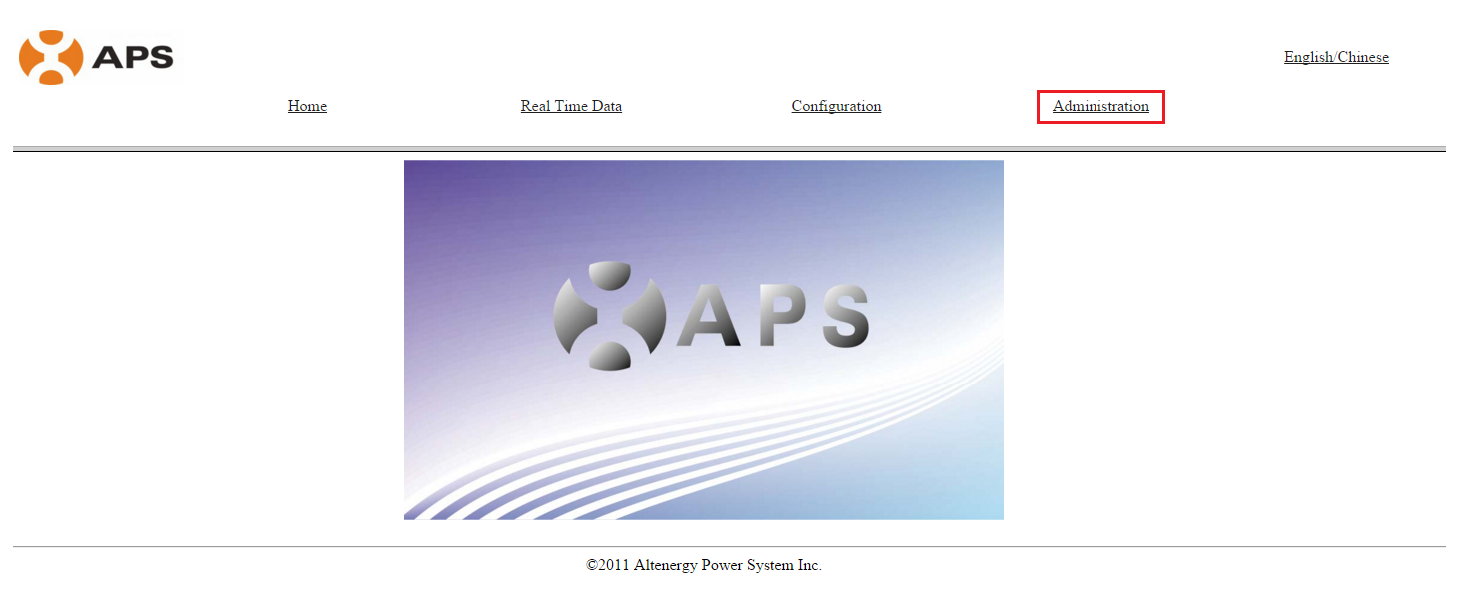

The Greenstar Internal Page will appear as displayed below.


Select Administration located on the top right

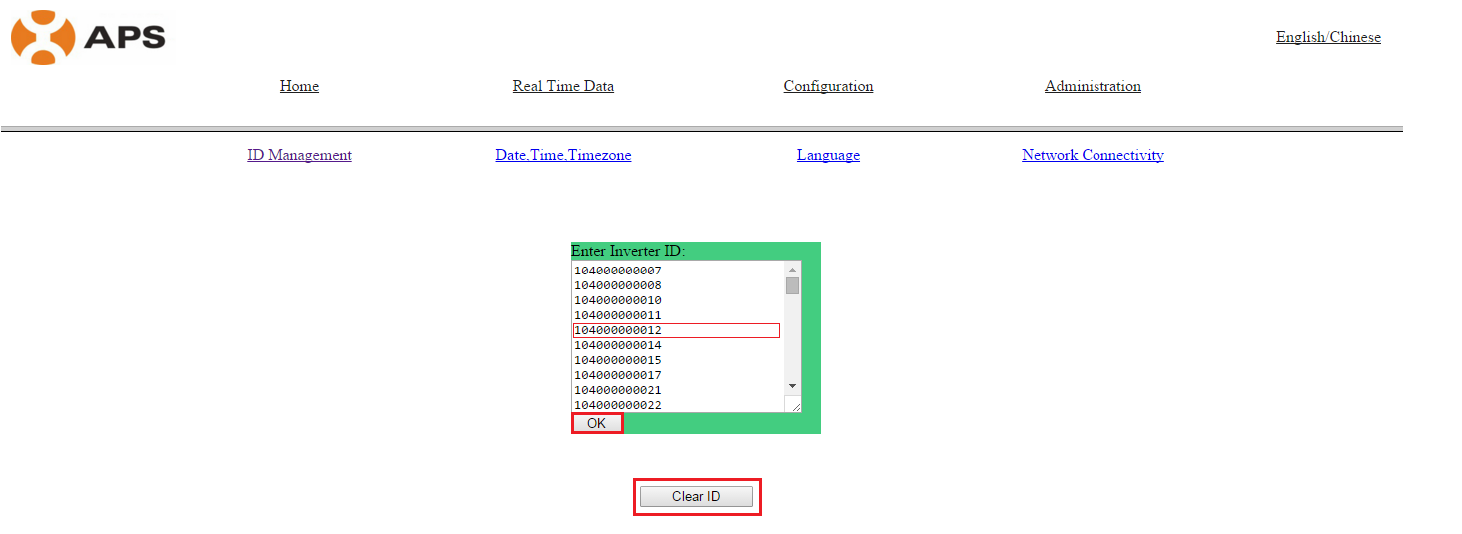

A box with will display a list of serial numbers.

Note: For back up purposes  copy and paste the list to notepad or other document program just in case you delete all serials.

In the serial box delete any old serials that have been replaced with the new serial numbers.

Select Clear ID to delete serial numbers

Select OK to complete.


It may take 15 - 20 minutes for the ECU to pick up the new inverter.
